PETZL

SPIN L1

$114.95

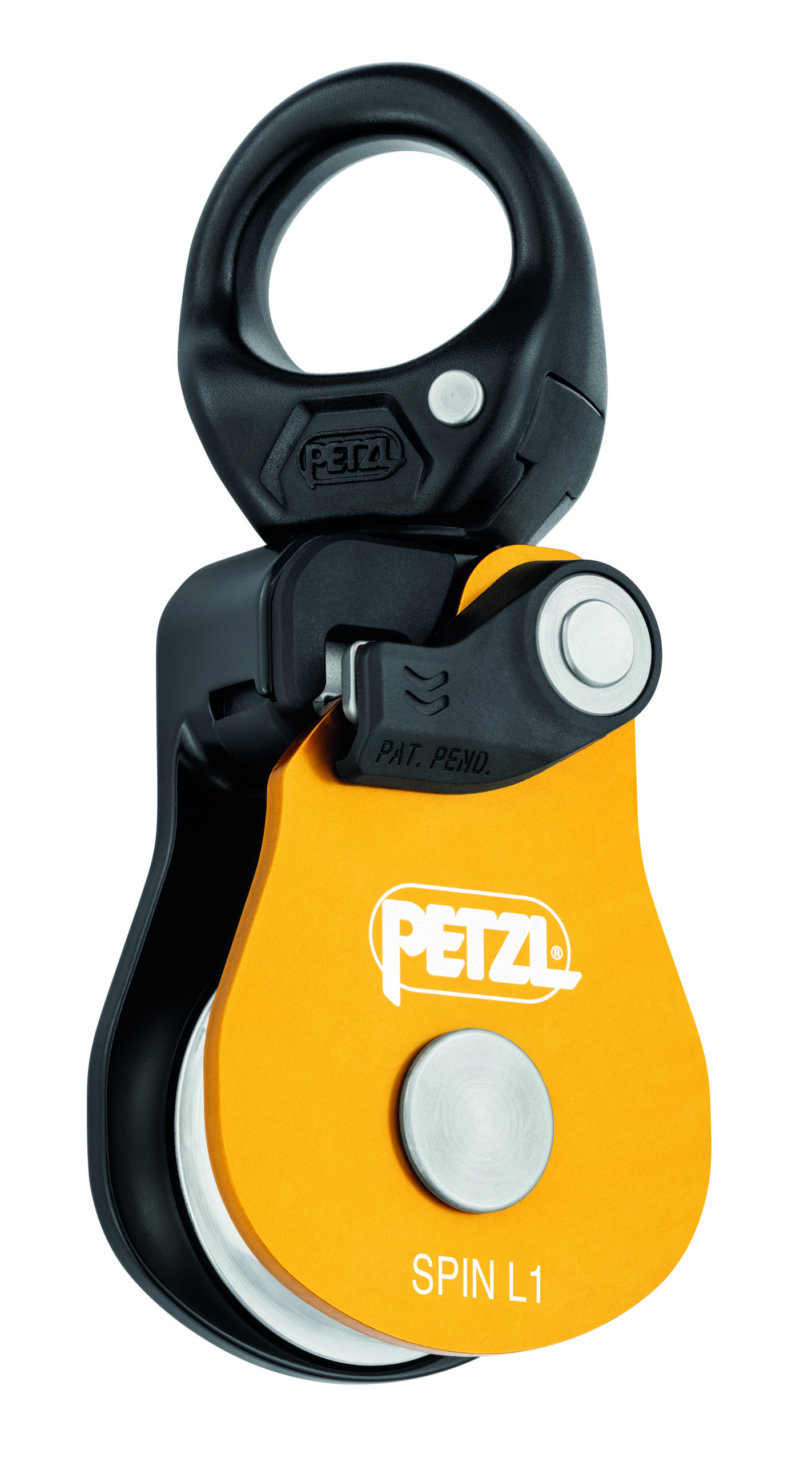

Very high efficiency single pulley with swivel

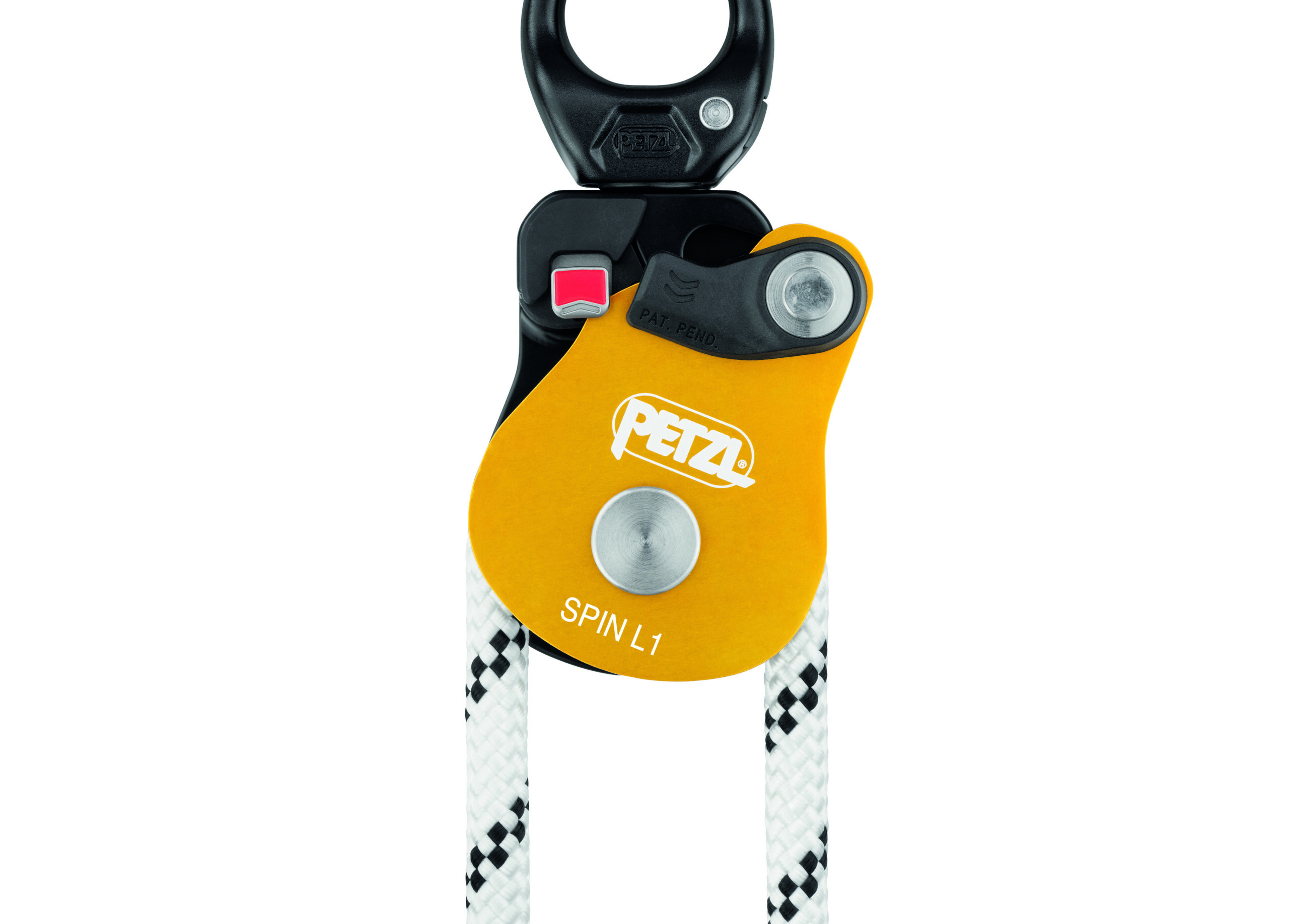

Openable even when attached to the anchor, the SPIN L1 pulley is designed for maximum simplicity in setting up hauling or load deviation systems, and tyroleans. The large diameter sheave mounted on sealed ball bearings gives it excellent efficiency. The swivel facilitates handling, allowing the pulley to be oriented under load, and direct connection of carabiners, ropes or slings.

Requesting Brochure for...

3184SPIN L1

Address
SKU: P001BA00 Category: Tags: , , , Brand:

    Description

    • Designed for maximum simplicity in setting up hauling or load deviation systems and tyroleans for work at height, rescue and tree care:

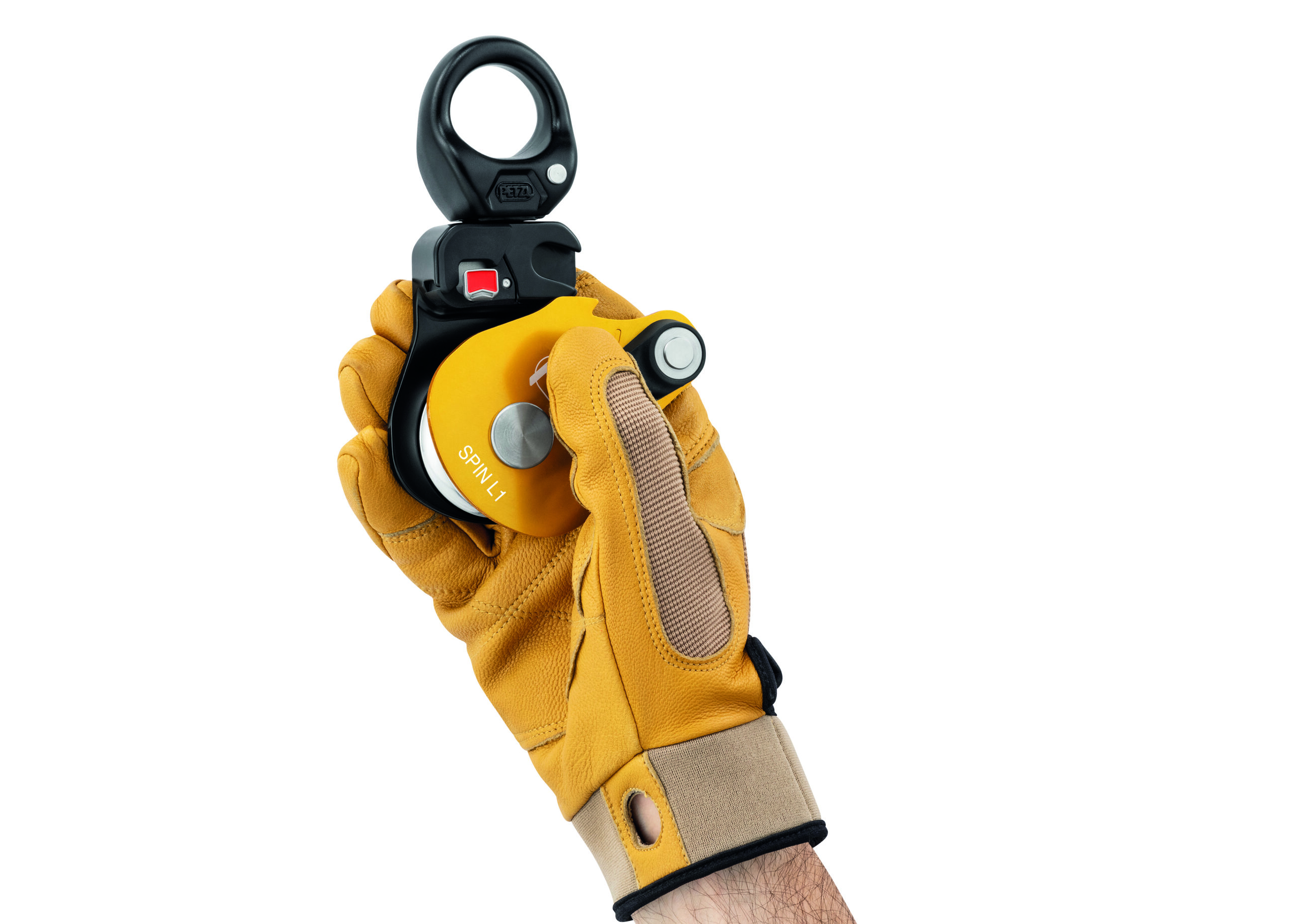

      – triple-action opening of the moving side plate is quick and easy, even with gloves

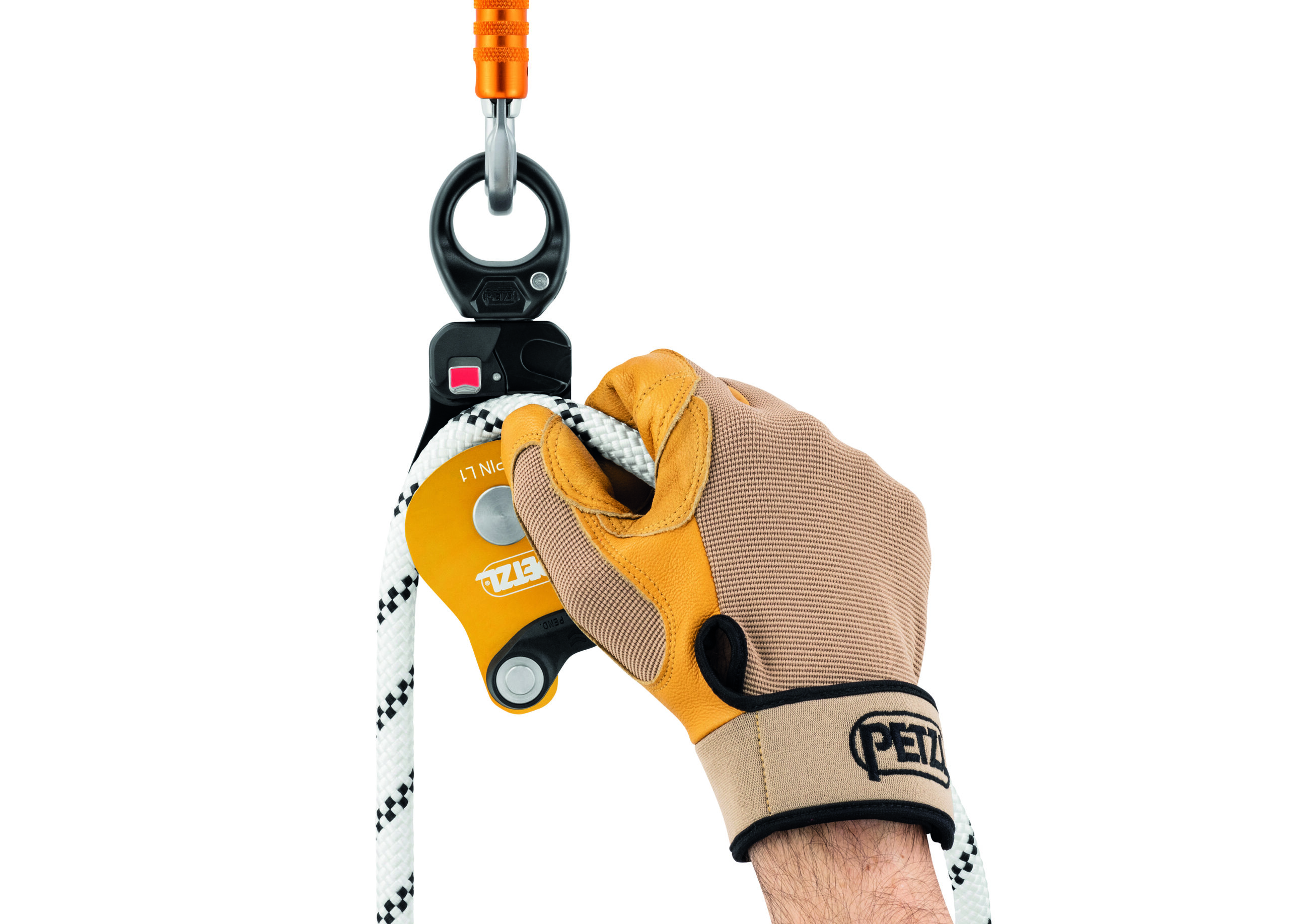

      – the rope can be installed with the device connected to the anchor.
      – red mark provides a visual warning when the moving side plate is unlocked
      – special side plate design protects the rope path
    • Optimal efficiency and easy handling:
      – large diameter sheave mounted on sealed ball bearings for excellent efficiency
      – swivel allows pulley to be oriented under load

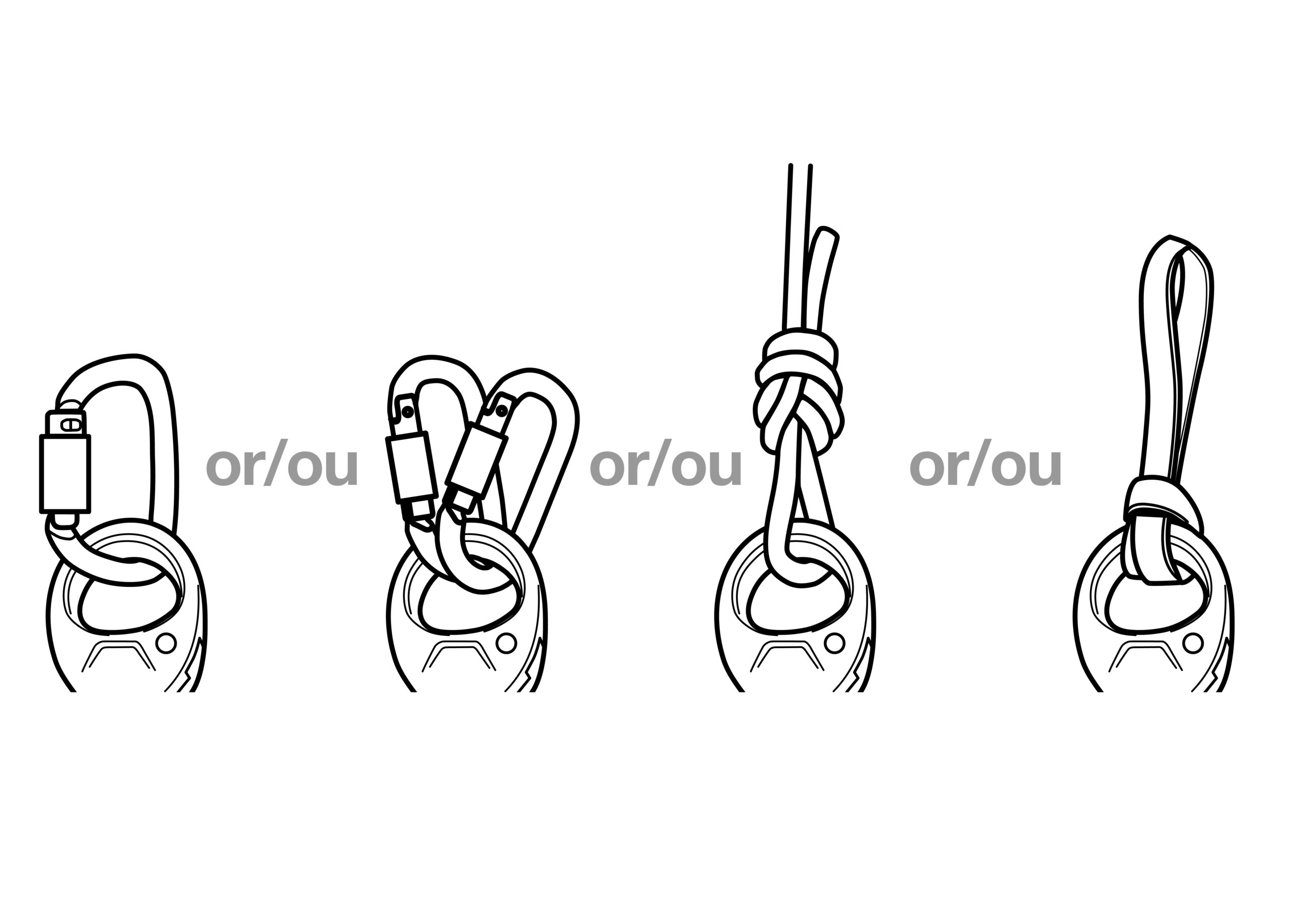

      – swivel accepts up to three carabiners and allows the use of ropes and slings to facilitate maneuvers.

    Additional information

    Weight 0.76 lbs
    Dimensions 6 × 3.5 × 1.75 in
    Color

    Yellow
    Min. Rope Diameter

    7 mm
    Max. Rope Diameter

    13 mm
    Sheave Type

    Sealed Ball Bearings
    Sheave Diameter

    38 mm
    Maximum Working Load

    4 x 2 = 8 kN
    Breaking Strength

    36 kN
    Efficiency

    95 %
    Material

    Aluminum
    Stainless Steel
    Nylon
    Certification

    CE EN 12278
    NFPA 2500 Pulley General Use
    UIAA
    XF 494 : FZL-H-T9.5/13
