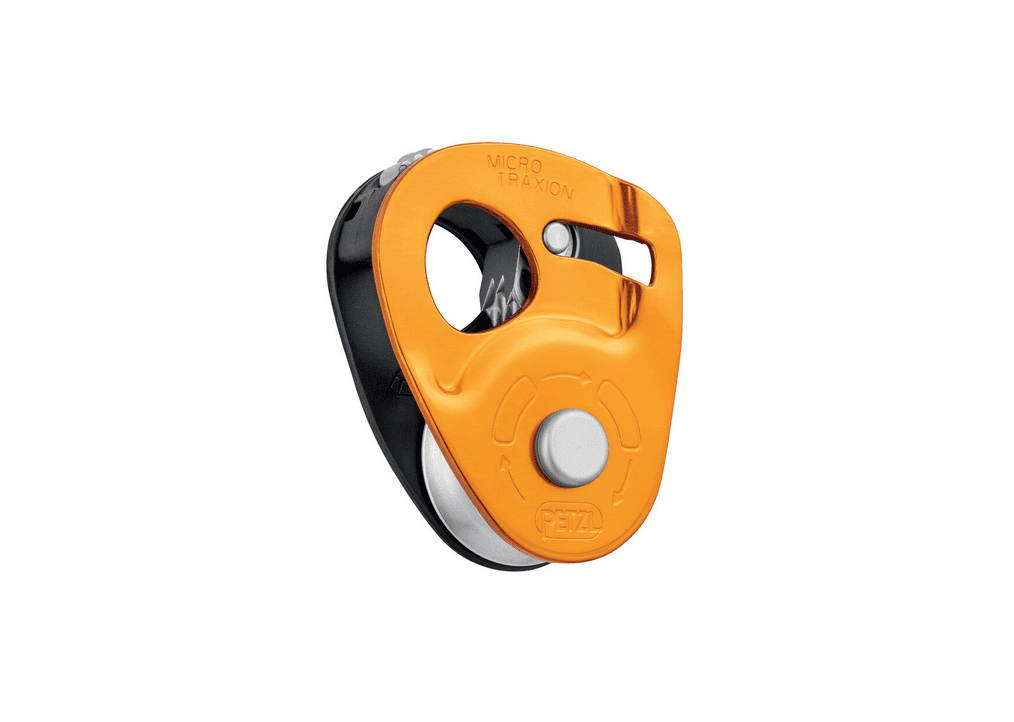

MICRO TRAXION
$138.00

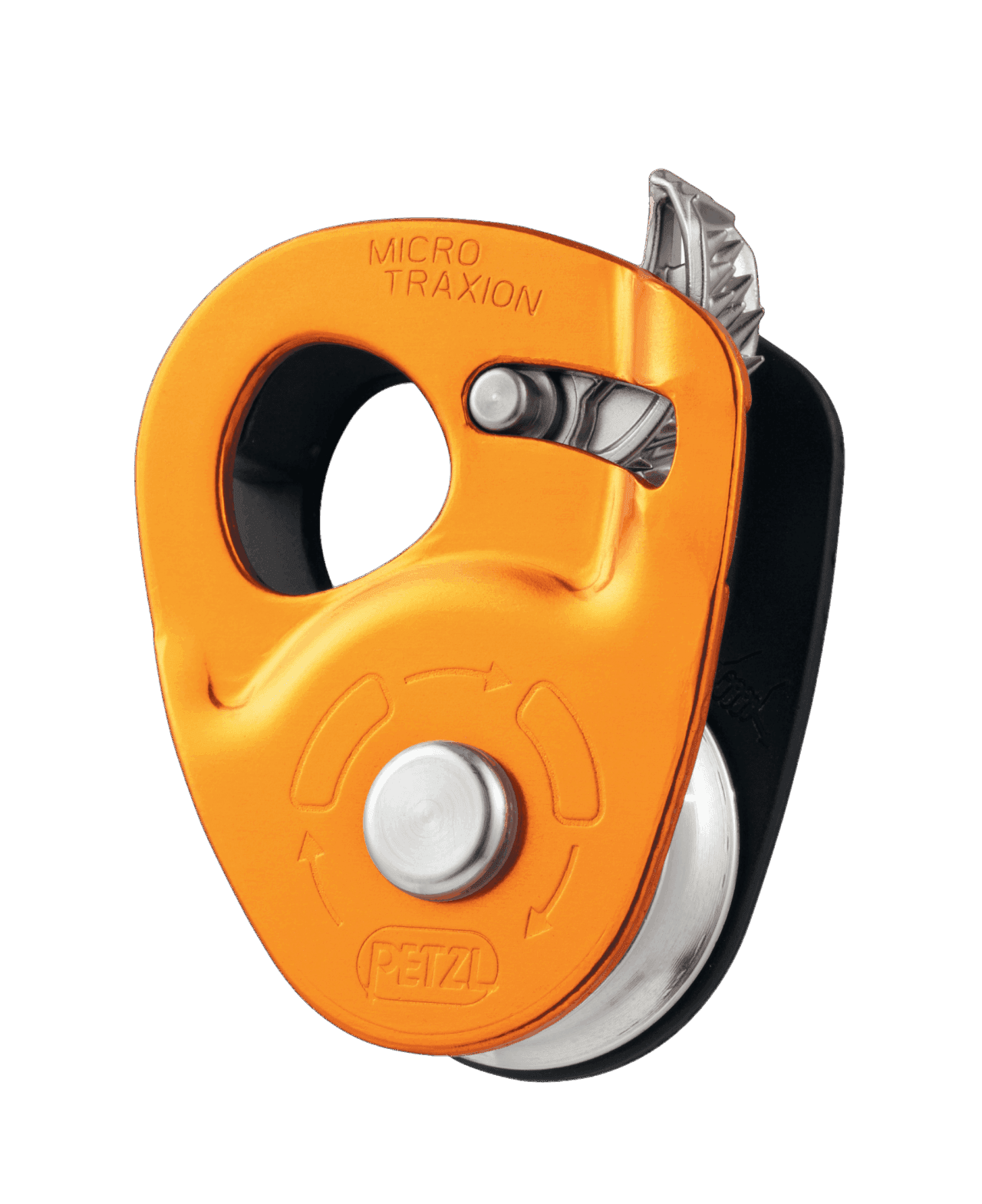

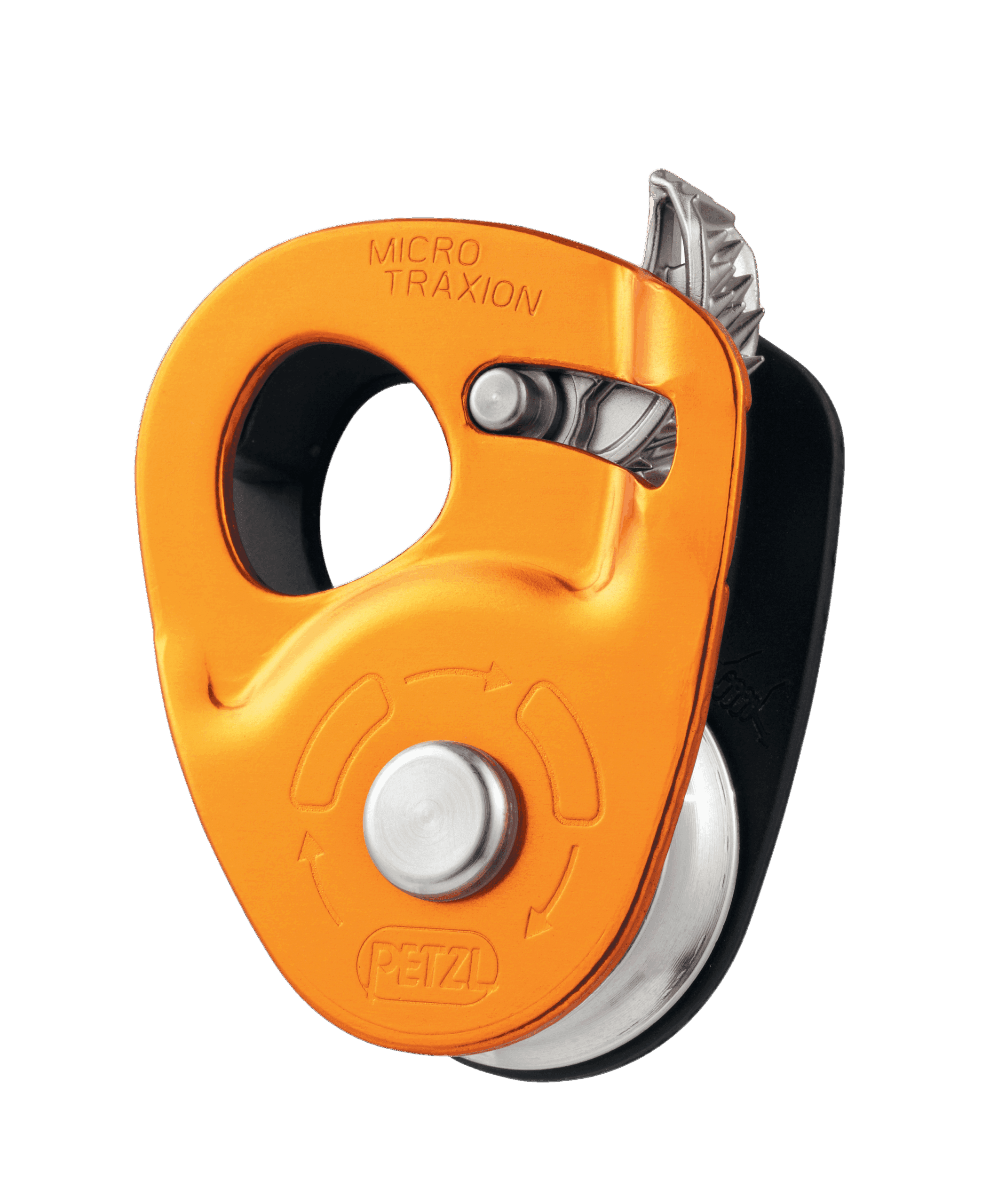

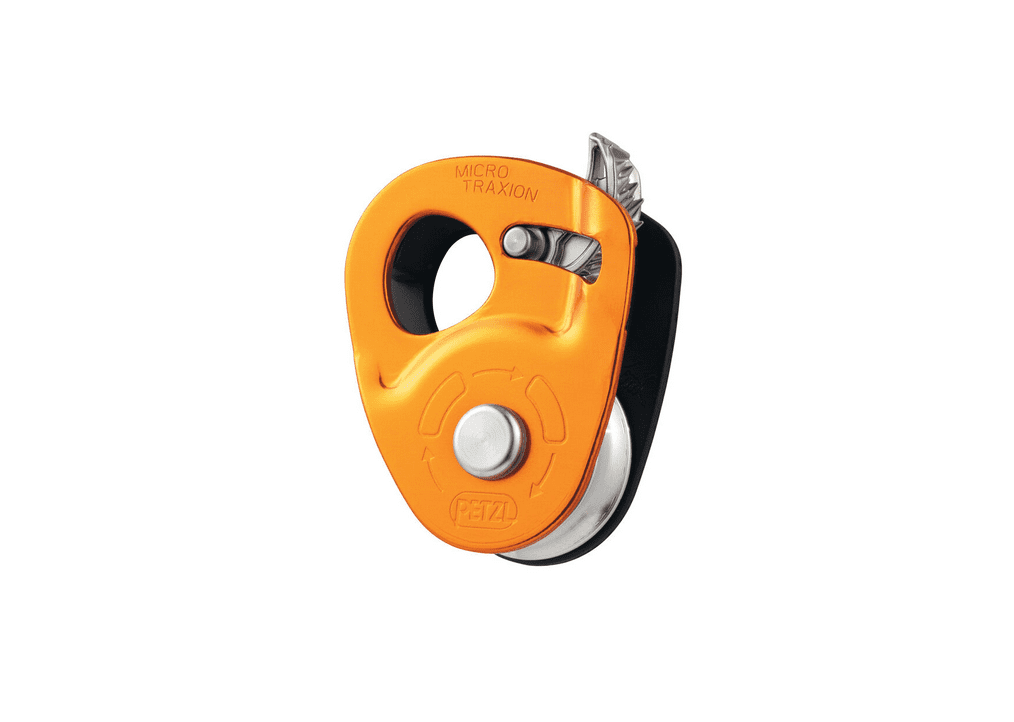

High-efficiency, lightweight progress-capture pulley
MICRO TRAXION is a compact and lightweight progress-capture pulley (85 g) designed for crevasse rescue, hauling, and self-rescue, and for use as an emergency ascender. The cam can be locked in the open position so the device can be used as a simple pulley. Sealed ball bearings provide excellent efficiency (91 %).
Requesting Brochure for...
3355MICRO TRAXION
-
Description
- Versatile:
– Designed for crevasse rescue, hauling, self-rescue, and for use as an emergency ascender

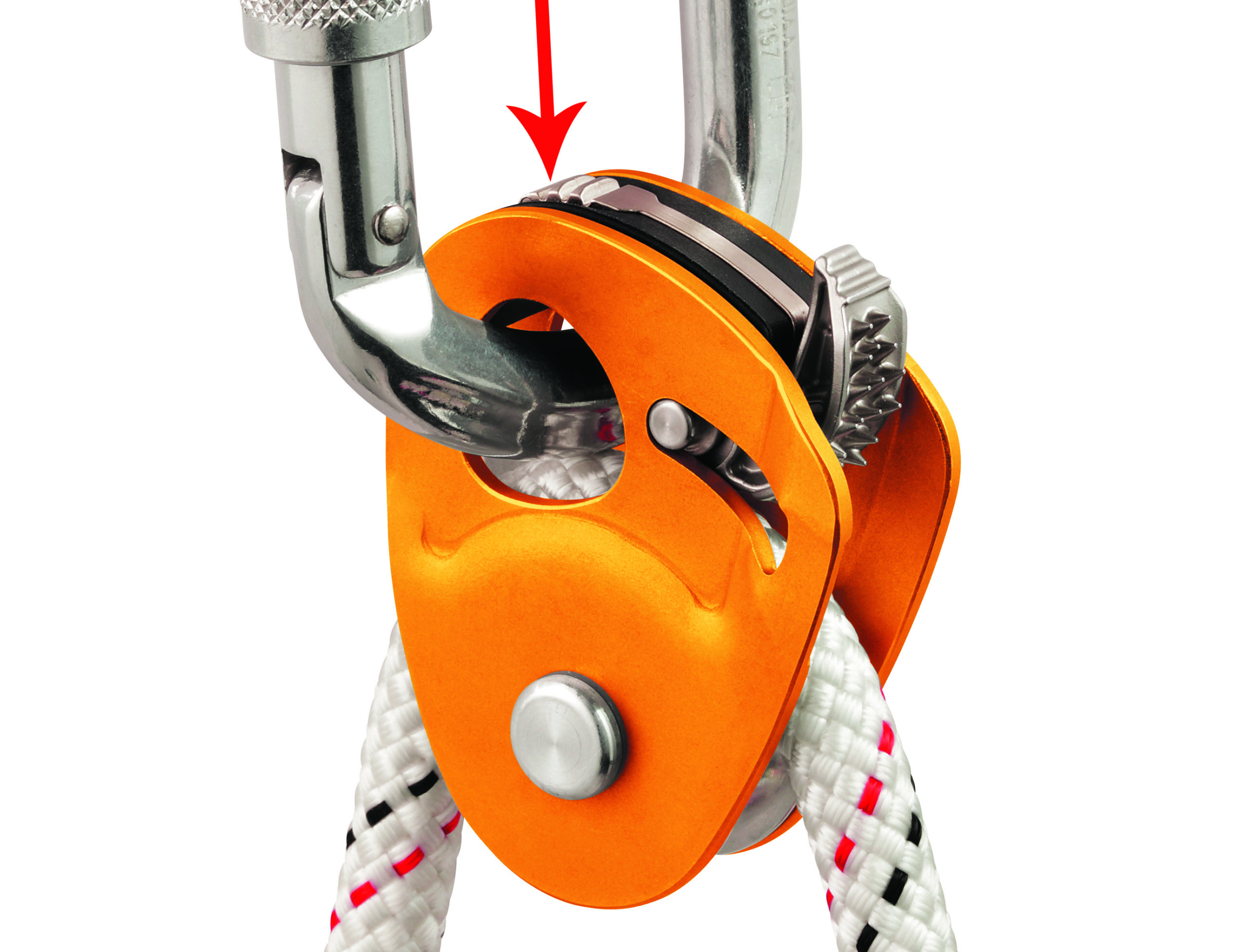

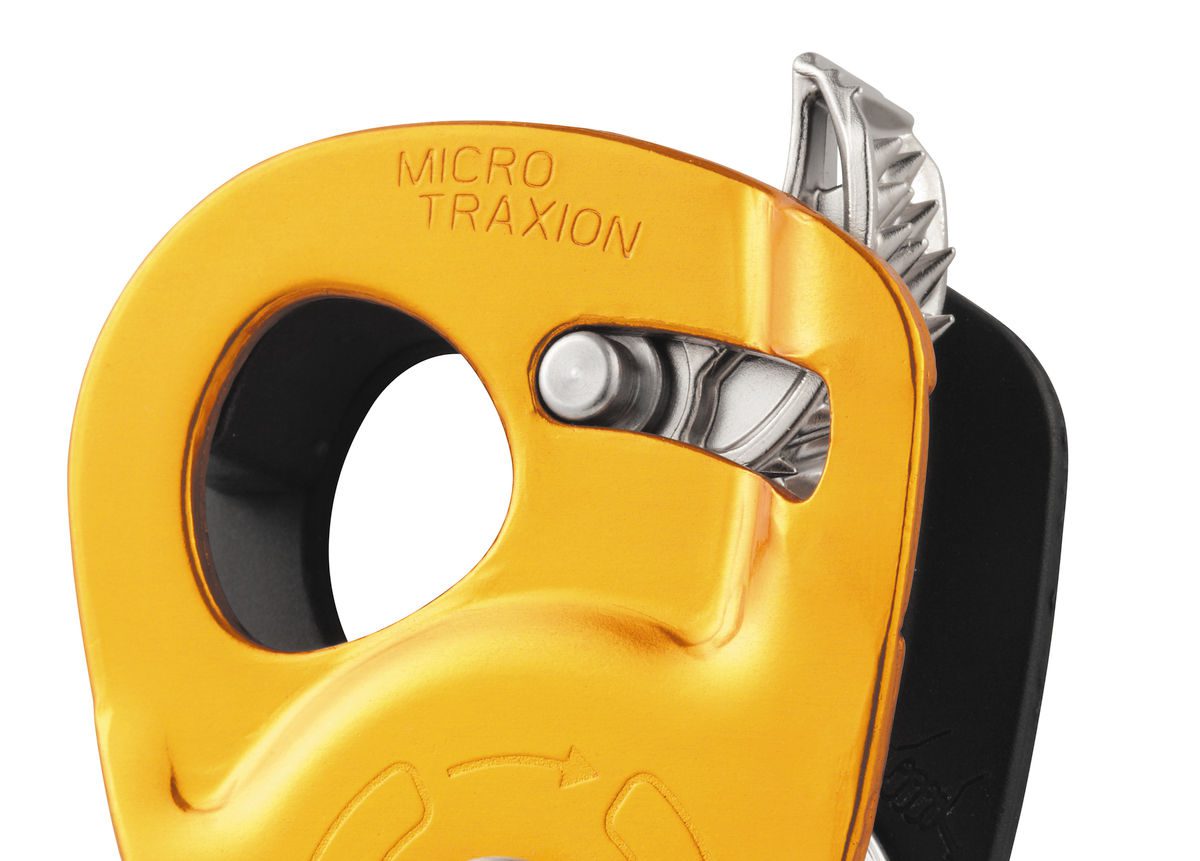

– May be used as a simple pulley by locking the cam in the raised position - Very light and compact:
– Only 85 g

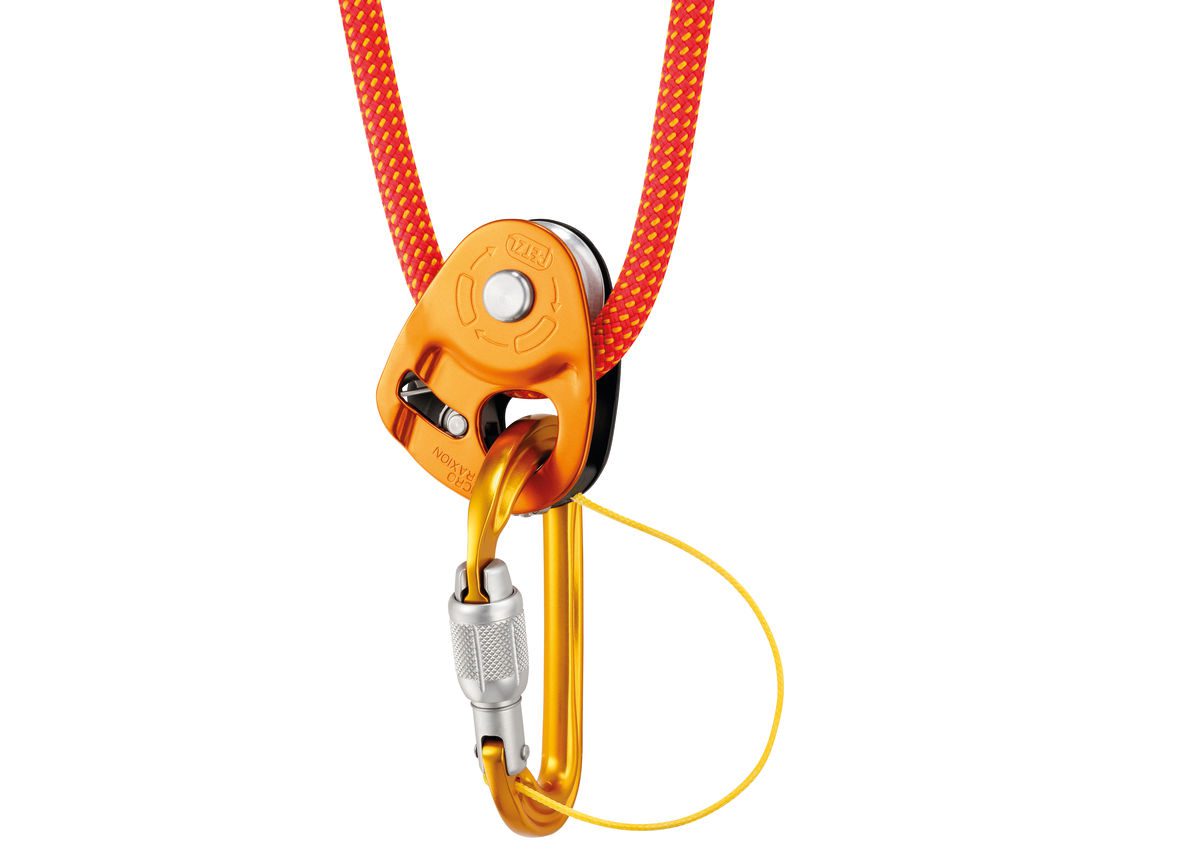

– Hole allows an Sm’D carabiner to be connected to the pulley with an cord, making the device loss-proof - High efficiency:
– Sealed ball bearings provide excellent efficiency (91 %)
– Works even on frozen or muddy ropes
– For use on 7 to 11 mm diameter ropes

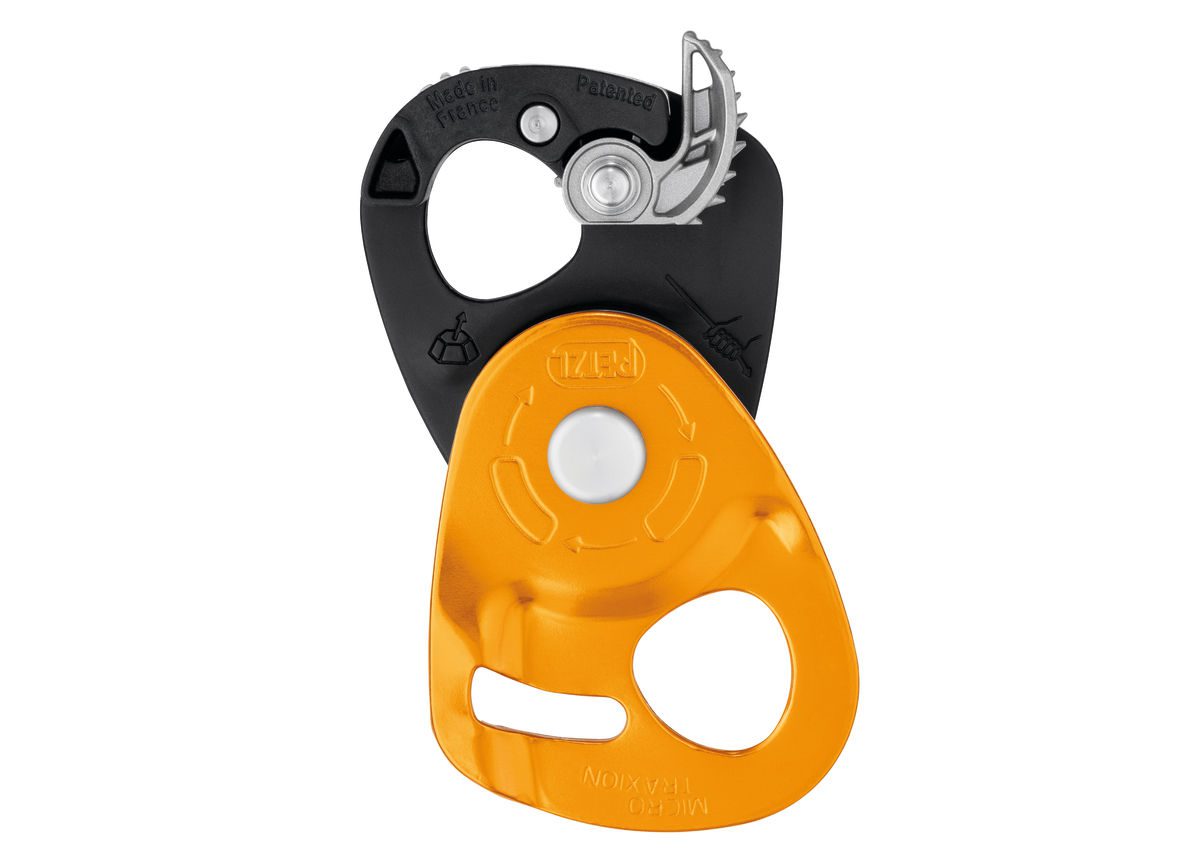

– Rope installation diagrams are engraved inside the pulley -
Additional information
Description
Additional information
| Weight | 0.27 lbs |
|---|---|
| Dimensions | 8.5 × 5 × 1 in |
| Min. Rope Diameter | 7 mm |
| Max. Rope Diameter | 11 mm |
| Sheave Type | Sealed Ball Bearings |
| Sheave Diameter | 27 mm |
| Working Load | 2 x 2.5 = 5 kN |
| Breaking Strength | 2 x 7.5 = 15 kN |
| Working Load as Progress Capture Pulley | 2.5 kN |
| Breaking Strength as Progress Capture Pulley | 4 kN |
| Efficiency | 91 % |

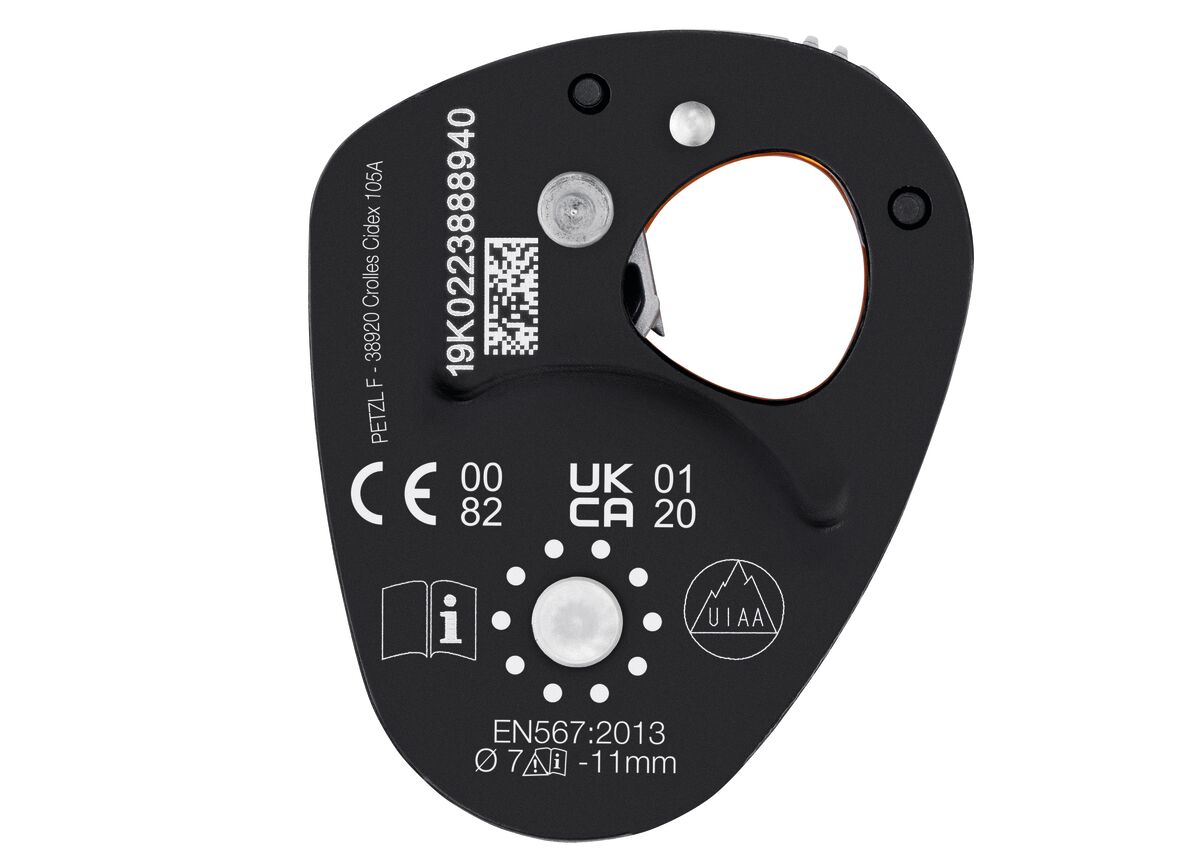

| Certification | CE EN 567 |
